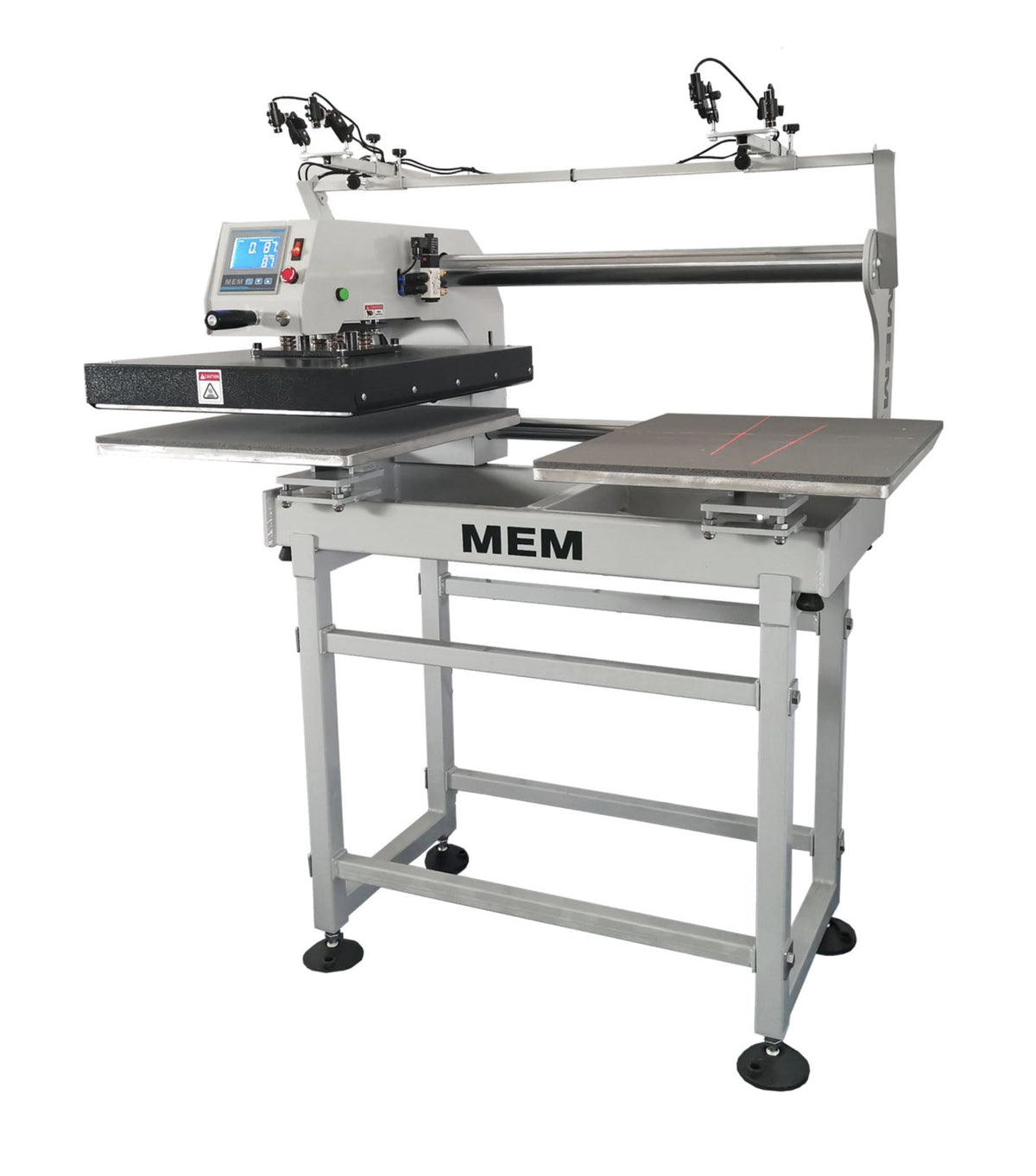

MEM TQ-4050 Dual Heat Press

MEM TQ-4050 Double Station Pneumatic
Heat Press (16” x 20”)

Industrial Performance. Built for High-Volume Production.

The MEM TQ-4050 is a commercial-grade dual station pneumatic heat press designed for DTF, screen print transfers, sublimation, and HTV. Its dual slide-out platens allow you to load one station while the other is pressing, increasing efficiency and keeping production moving.

Key Features

• 16” x 20” Dual Station Pneumatic Heat Press
• Increased production by reducing downtime
• Up to 120 PSI pneumatic pressure for consistent results
• Thick cast aluminum heating platen with even heat distribution (±5°C)
• Built-in laser alignment system on each platen
• Fully digital temperature and time control (up to 500°F)
• Quick-change platen system
• Heavy-duty steel construction with included floor stand
• Requires air compressor (not included)

What’s Included

• MEM TQ-4050 Heat Press
• Heavy-Duty Stand
• Laser Alignment System
• Latest Digital Controller
• Quick-Change Platens

Specifications

• Platen Size: 16” × 20”
• Pressure: Up to 120 PSI (0.8 MPa)
• Temperature: Up to 500°F
• Timer: 0–999 seconds
• Power: 110V, 1600W
• Electrical: 20A Dedicated Outlet Required
• Weight: 220 lb.

Recommended Air Compressor

• Tank Capacity: 8 Gallons (20L) or larger
• Motor Power: 1 HP (800W) minimum
• Working Pressure: 67–120 PSI (0.4–0.8 MPa)
• Air Hose: Compatible with a 8mm inner diameter air hose (typically 6mm outer diameter)

Shipping & Warranty

• Free Shipping to the Continental U.S. (Update service, non-commercial address, or limited access delivery will cost additional)
• 2-Year Parts Warranty
• Lifetime Technical Support
• Secure Checkout with PayPal, Visa, MasterCard, & Shop Pay
